    IP65 P4.81 Outdoor Rental LED Display For All Weather Conditions

    Ask Lasest Price
    Brand Name : Googol
    Model Number : P4.81
    Certification : CE,FAD,ROHS,
    • Product Details
    • Company Profile

    IP65 P4.81 Outdoor Rental LED Display For All Weather Conditions

    High Durability Outdoor Fixed LED Display for All-Weather Conditions P4.81


    Excellent Heat Dissipation Outdoor Rental LED Display for Permanent Installations P4.81

    This outdoor Fixed LED display product has excellent heat dissipation performance, and it can be maintained in the front and back as well. Its all-weather durability and energy efficient design make it an ideal choice for permanent outdoor installations. The display type of this product is Outdoor Fixed LED Display, which means it is specifically designed for outdoor use and can withstand various weather conditions. It is suitable for a wide range of applications, including outdoor advertising, sports events, concerts, and Media Fixed Advertising Screens.


    Applications:

    ● Outdoor Highway Toll Gate

    ● Outdoor Advertising Machines

    ● Media Fixed Advertising Screens


    Product Features:

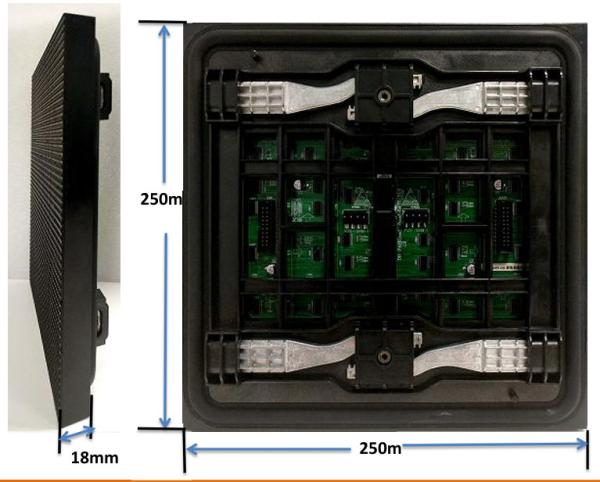

    ● DH-PH4.81 outdoor full-color surface mount module for my company's professional mold design of a product, PCB board and kit independent research and development of mold design, 250 * 250mm buckle type before the installation and maintenance of disassembly more convenient and efficient. PCB double-layer circuit design, TG150KB sheet thickness 1.6MM, sheet and copper thickness to meet the industry standards, IC using Jichuang North ICND2038S high reflash rate double buffer chip equipped with RUC7258 line decoding chip, effective suppression of LED light-emitting chip internal short circuit and open string bright uplink ghost hidden and downstream afterimage phenomenon.

    ● High fire rating, TUV mechanism 5VB fire test certification; special design waterproof rubber ring, multi-layer waterproof design, protection grade of IP65


    Key Parameters:

    Part NumberP4.81Part NumberP4.81
    Pixel Pitch4.81mmModule Weight≤880g
    LED ConfigurationSMD 1921Module Mask Flatness≤0.2mm
    Pixel Density43264dot/m2Input Voltage(DC)5V
    Pixel Color Configuration1R1G1BModule Max. Current(Ampere)≤10.5A
    Pixel Arrangement52*52Module Max. Power Consumption≤55W
    Drive Mode1/6&7SMax. Power Consumption≤880W/㎡
    Luminance≥5500cd/㎡Module Installation ModeBuckle Type Front Mounting
    Gray Scale16bitMTBF≥10,000h
    Refresh Frequency≥1920HzLifespan100,000h
    Mask ConstructionHave a MaskOperating EnvironmentOutdoor
    Viewing Angle (H/V)140°(±10°)Operating Temperature-10℃~+60℃
    Viewing Angle (V/V)120°(±10°)Operating Humidity30%~85%RH
    Driver ChipICND2038SStorage Temperature0℃~+40℃
    Decoding ModeRUC7258Storage Humidity35%~60%RH
    Module Size250*250mmIP RateIP65
