Heat Dissipation Outdoor Rental LED Display For Permanent Installations

Ask Lasest Price
Brand Name :	Googol
Model Number :	P1.5 P1.9 P2.6 P2.9 P3.9
Certification :	CE，FAD，ROHS

Add to Cart

Product Details
Company Profile

Heat Dissipation Outdoor Rental LED Display For Permanent Installations

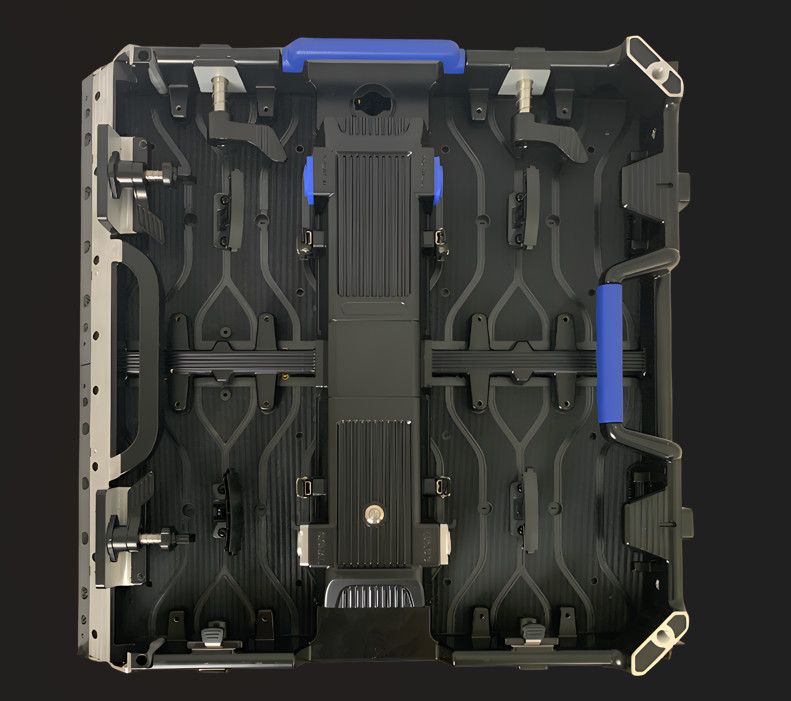

RENTAL DISPLAY H-PRO (curve lock)
Size:500mm*500mm*80mmWeight: lndoor / Outdoor 6.5 kgs /7.5 kgs
Product Advantag:Supports +10" angle adiustment. Hexagonal curve lock design, precise positioning and adjust the reguired angle at one timeMultiple splicing options, seam <0.05mm
Waterproof and dustproof. Front maintenance of outdoor modules, convenient maintenance
Left & right module interchangeable.
Each model of rental cabinet has a unified HUB board, making product upgrades and interchange more convenientHigh precision, protection level lP65
High brightness, high refresh rate, high contrast.Remarkable performance.

Tech Parameters:

Product parameters
Indoor
Product Model	H-PRO P1.5	H-PRO P1.9	H-PRO P2.6	H-PRO P2.9	H-PRO P3.9
Pixel Pitch	1.5625mm	1.95mm	2.604mm	2.97mm	3.91mm
Density (dots/m2)	409,600	262,144	147,456	112,896	65,536
Led Lamp	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020
Module Pixel	160*160	128*128	96*96	84*84	64*64
Cabinet Pixel	320*320	256*256	192*192	168*168	128*128
Module Size (mm)	25025015mm
Cabinet Size(mm)	500500/500100080mm
Cabinet Weight (kg)	6.5kg / 12kg
Brightness(nits)/Scan	600-800(40s)	600-800(32s)	600-800(32s)	600-800(28s)	600-800(16s)
Max Power(w/m2)	480w/㎡
Install Method	Stack/Hanging/Mounted/Ground
Maintenance	Front/Rear
Power Input	100-240v AC 50-60Hz
Working Humidity	-20~ +45
Refresh Rate(Hz)	3,840Hz
IP Rating	IP35
Signal Input	S-video/VGA/DVI/HDMI/SDI
