High-performance Outdoor Fixed LED Display for all-weather and
energy efficiency P10
This outdoor Fixed LED display product has excellent heat
dissipation performance, and it can be maintained in the front and
back as well. Its all-weather durability and energy efficient
design make it an ideal choice for permanent outdoor installations.
The display type of this product is Outdoor Fixed LED Display,
which means it is specifically designed for outdoor use and can
withstand various weather conditions. It is suitable for a wide
range of applications, including outdoor advertising, sports
events, concerts, and Media Fixed Advertising Screens.
Applications:
● Outdoor Highway Toll Gate
● Outdoor Advertising Machines
● Media Fixed Advertising Screens
Product Features:

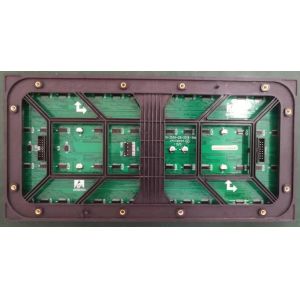

● D-PH10 adopts outdoor full color module PCB board, international
FR-4 board, and two layer circuit board design.
● LED lamp beads using Nation Star 2727 gold thread package, white
balance brightness ≥ 6000 nit.
● The driver IC adopts ICND2153, and the visual refresh frequency
is above ≥ 3840HZ.
● Module size 320 * 160mm, unique design, compared with the market
routine, the flatness is better.
● The module adopts blanking circuit design, built-in LED display
screen residual elimination circuit (uplink residual)
And lamp bead short circuit, open series bright processing circuit
(caterpillar processing phenomenon).
Key Parameters:
| Part Number | P10 | Part Number | P10 |
| Pixel Pitch | 10mm | Module Weight | ≤450g |
| LED Configuration | SMD 2727 | Decoding Mode | ICN2012 |
| Pixel Density | 10000dot/m2 | Input Voltage(DC) | 5V |
| Module Size | 320*160mm | Module Max. Current(Ampere) | ≤8A |
| Pixel Arrangement | 32*16 | Module Max. Power Consumption | ≤40W |
| Drive Mode | 1/2S | Operating Temperature | -20℃~+80℃ |
| Luminance | ≥6000cd/㎡ | Operating Humidity | 10%~85%RH |
| Driver Chip | ICND2153 | Viewing Angle (H/V) | 140°(±10°) |
| Refresh Frequency | ≥3840Hz | Viewing Angle (V/V) | 120°(±10°) |
Packing and Shipping:
Outdoor Fixed LED Display Packaging and Shipping
Our Outdoor Fixed LED Display is carefully packaged to ensure safe
delivery to our customers.
Packaging.
The display panels are first wrapped in protective foam and then
placed in a sturdy wooden crate. The edges of the crate are
reinforced with metal corners for added protection during
transportation.
Each crate is labeled with the product name, dimensions, and weight
for easy identification and handling.
Shipping
We offer both air and sea shipping options for our customers,
depending on their location and preference.
For air shipping, we use reliable and well-known carriers to ensure
timely and safe delivery. The display panels are carefully loaded
into airtight crates and secured with straps to prevent any
movement during transit.
For sea shipping, we use specialized containers specifically
designed for transportation of delicate electronic equipment. The
containers are equipped with shock absorbers and temperature
control to protect the display panels from any damage.
Our team carefully monitors the shipping process to ensure that the
products arrive at their destination in perfect condition.
Upon arrival, our customers can choose to have the display panels
professionally installed by our team or they can opt for
self-installation with our detailed installation guide.
With our careful packaging and reliable shipping options, you can
trust that your Outdoor Fixed LED Display will arrive safely and
ready to impress.
